Human Centered Design: The Coming Revolution

June 14, 2010
HCD breaks from traditional development where marketing writes requirements and engineering builds something.

Today’s process control systems are capable of quickly handling enormous amounts of data in different formats and communicating with a wide variety of devices and equipment. While all of these features and technologies are allowing us to do things that may have never been imagined 20 years ago, what has been lost in the rat race is an emphasis on making it easy to set up, maintain, and operate these complex systems. After all, we have experts and trained specialists around to sort this stuff out . . . right?

Adding fuel to the fire is another important trend in our industry. Budgets are tight, and a large number of experienced workers (operators, maintenance technicians and engineers) are nearing retirement age.  As they go from spending their days in the plant to dropping a worm in the local fishing hole, the knowledge that took years to accumulate, knowledge that is vital to operating and maintaining process plants and other facilities, is lost. The globalization of the world economy also results in plants being built in areas with little or no industrial history and therefore a limited pool of trained or even educated workers.

Human Centered Design

The solution to taming the complexity associated with today’s technology and creating products that plant personnel can quickly learn and use efficiently lies within an approach called Human Centered Design (HCD).

HCD is an interdisciplinary and iterative approach to design focused on understanding and meeting human needs versus an exclusive focus on features and technology. Let’s use the example of tax-preparation software, which facilitates quickly and easily filing your taxes. This is accomplished by designing the software in a manner that is intuitive with attention to the things that matter most like preventing errors and identifying tax credits. A typical filer would find it much easier to understand “Did you pay any interest on a mortgage?” as opposed to “Enter the value reported in box 1 of Form 1098 into line 10 Schedule A (Form 1040), subject to the limitations outlined in IRS Publication 936.”

When it comes to software user interfaces, this means using a task-based approach to better align the system with the user’s mental model about the work he or she is trying to accomplish. The concept of Human Centered Design is not new; its roots lie in Human Factors and Ergonomics research and design that arose during World War II to apply knowledge of human limitations and capabilities to the design of equipment, especially with aircraft cockpit controls to prevent crashes. The approach had been slow to reach the computer industry, as early users wore the challenge of memorizing arcane command codes and workarounds as a badge of honor. But as personal computers became more popular, and especially with the advent of the World Wide Web, companies became more aware of the need to deal with the “average user” who doesn’t have the time or inclination to study the programs and figure out what the programmer was thinking when they wrote the application. Rather, the forward-thinking companies found a competitive advantage in understanding the customer and designing the program to match their way of thinking.

Carnegie-Mellon University’s Human Computer Interaction Institute (HCII) pioneered research in this area and advanced the methodologies for applying Human Centered Design to computers and software user interfaces. They provided significant input to Emerson in developing its own Human Centered Design Institute. The Institute’s primary mission is to ensure each product the company introduces is aligned with customer work practices and goals. "Understanding our customer's work practices, how they interface with each other and technology, and performing usability testing, provides the foundation for Human Centered Design," says Institute director Duane Toavs.

The HCD Process

Applying Human Centered Design is not a matter of just gathering a bunch of engineers and applying common sense. For one thing, you will find that “common sense” is not that common (although once you come up with an innovative and intuitive design it should seem that way) and secondly this approach will result in an application that meets the engineer’s needs (often throwing in the latest cool technology fad) but makes no sense at all to the ultimate user of the product.

Applying Human Centered Design boils down to three key activities:

  • Understanding the users. Understanding the users and their goals involves interviews, contextual inquiries (observing workers going about their daily work in their workplace), researching tasks and work standards, and analyzing current solutions. The first question to be answered is how the user thinks about their work and what makes them successful at the end of the day. This information is organized into typical user or “persona” profiles, scenarios, and task maps that show the important interactions between different users. Back to the tax example, the types of filers identified at the beginning of the article provide an oversimplified set of three personas (pay a professional to do everything, old school paper and pencil, and tax software consumer).
  • Creating design solutions. With the user-centric information providing a strong foundation, design teams then embark on ideas for new products. The design phase includes sketching and ideation followed by a series of software or hardware prototypes.
  • Testing the design. The evaluation phase follows, with design evaluations of the prototypes and usability testing with actual users. The whole process is iterative: design prototypes, evaluate with the aid of actual users, and then improve upon the design based on user feedback. Only after several of these iterations is the product actually ready to be built.

While these activities may seem obvious and easy to implement, they break from the traditional development approach where marketing writes a set of requirements and engineering builds something based on their best interpretation of the collective requirements. The evaluation phase and focus on iteration also present challenges to a traditional release schedule where the scope of a project is fairly well defined.

HCD Results

It is important to understand that applying Human Centered Design is not the responsibility of the control system engineer or project team creating the plant specific displays and control strategies. Ideally, the control system vendor delivers a product that is not only easy to use out of the box, but facilitates customizing the system to meet plant specific needs without requiring in-house HCD expertise. Everything from the engineering and administration tools to the operator interface are designed in a manner that prevent mistakes and promote efficiency via ease of use.

For example, it is useful to place small trend charts next to key variables in a process display; this takes advantage of the operator’s inherent pattern-recognition capability. The control system vendor can encourage this design by providing configuration building blocks that are easily incorporated into the plant specific displays. Then consider the case of a process alarm on the operator’s display. The operator would typically click on the alarm and a faceplate would appear, showing the process value and some indication of how the loop is performing. In a conventional (non-HCD) system, that would be the limit of the information an operator would have to quickly take corrective action. A system built on HCD principles could display a possible root cause and recommended action to resolve the problem.

Even better, a note is also associated with the alarm that was added by a senior operator or maintenance worker in your plant detailing valuable process specific knowledge. This sharing or propagation of knowledge provides a new operator with the information he needs, as he needs it, to facilitate making good decisions.

Transition from an operator to a different common plant persona the instrument technician whose responsibility is ensuring the devices used by the control system are functioning properly. Say, for example, the instrument technician has received an indication that an issue exists with a pressure transmitter. They have a completely different mindset (or mental model) and set of common tasks and goals than the operator. The instrument technician launches a device dashboard for that transmitter, but the information could be presented in a myriad of ways. The traditional presentation involves multiple screens and sometimes forces the user to go through tab after tab in order to find relevant information.

Figure 1 shows a conventional diagnostic display for a HART pressure transmitter with a problem. While the information is correct, it is not presented in a way that easily conveys the critical parameters and problem. Figure 2 shows the same device with information organized and displayed in a quickly understandable manner. Common tasks are front and center, with embedded walkthroughs to aid infrequent or inexperienced users.

Fig. 1: Conventional diagnostic display for a HART pressure transmitter with a problem.

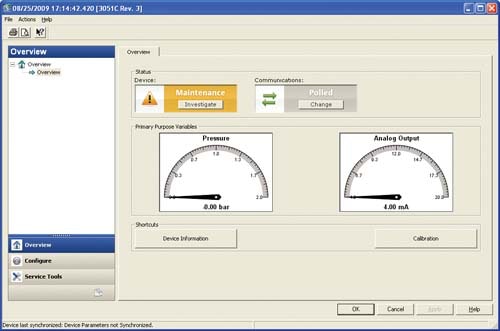

Fig. 2: Reworked dashboard of the transmitter shown in Fig. 1.

Operators and maintenance technicians keep multi-million (sometimes billion) dollar investments up and running. Just like the tax-preparation software facilitates quickly and accurately filing your taxes, the examples discussed above promote an efficient and profitable manufacturing environment. Human Centered Design will ultimately revolutionize this industry by bringing a focus to ease of use and implementation while leveraging the technologies of the future.

About the Author
Bryan Jones is product marketing manager for Emerson’s DeltaV Human Centered Design program.
