Spherical Pipeline Magnetic Separator

Aug. 7, 2014

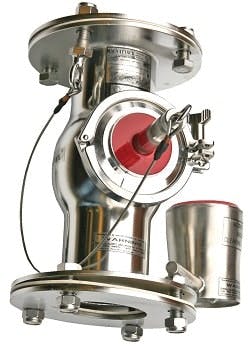

The Magnattack™ separator houses a high-intensity magnetic element with flux strengths ranging from 10,000 gauss to over 12,000 gauss in larger models.  Design is extremely effective at removing ferrous metal and work-hardened stainless steel in dilute phase powder conveying lines and gravity chutes up to 6” diameter.  Spherical magnet is easily removed from the housing, and includes a cleaning station for removal of collected metal.  Aerodynamic design creates minimal pressure drop, since the area around the magnetic sphere is similar to the cross-sectional area of the pipe, providing separation efficiency without risk of blockages. The Magnattack Spherical Pipeline separator conforms with HACCP International Food Safety Standard 0909MAGSEP 1-2010.
