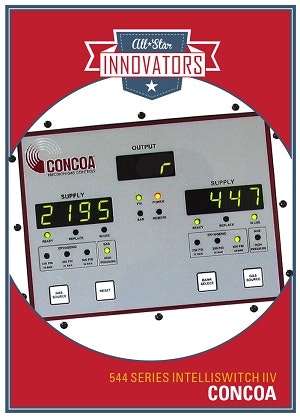

Full Name: 544 Series IntelliSwitch IIv
Team: CONCOA, Virginia Beach, VA
Debut: February 2014
Field Position: High Pressure Gas Distribution and Management Systems
Skill Set: Automatically switches between two high-pressure, high-flow gases to provide interchangeable service and continuous supply.
• Compatible with all inert nonflammable gases
• Handles pressures up to 4500 PSIG (210 BAR)
• Accommodate nitrogen flows up to 6000 SCFH (2800 SLPM) at 2000 PSIG (140 BAR) without pressure regulation.
Regulatory Profile: Applicable to cGMP processing environments; provides for remote monitoring/integration.
Coach’s Notes: Designed to routinely switch between two gas sources without interruption. Offers reliable high-flow, high-pressure switching in the most demanding applications and environments. The series is ideal for automation projects involving high-pressure gases and efficient management of gaseous withdrawal from any source including cryogenic liquid cylinders, high-pressure cylinder banks, tube trailers, generators, compressors or bulk.
Scout’s Notes: “Proprietary economization software virtually eliminates liquid cylinder vent loss and substantially reduces residual return. Switching is actuated as inlet pressure falls below a user-defined point by means of a web interface or a serial port. A web server allows for remote monitoring and e-mail notification of events to users.”
Team Resources: CONCOA, a leader in gas pressure and flow control technologies, is certified ISO 9001:2000 organization. CONCOA specializes in the industrial, fabrication, medical, gas distribution, laser, research, specialty gas and semiconductor industries.
