CapPlus Technologies

Nov. 4, 2005
Two Capsule Fillers Cover a Wide Range of Needs

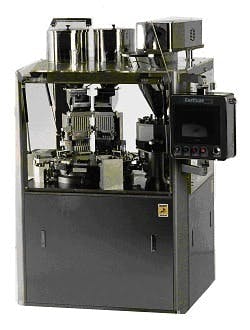

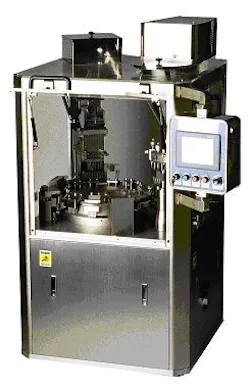

CapPlus Technologies has introduced two new capsule fillers, the CF 45 (pictured at right) and the CF100 (pictured below).Features of the CPT CF 45:
  • Rated at 45,000 capsules per hour
  • Reinforced heavy-duty steel frame
  • #304 stainless steel enclosures, tabletop, capsule hopper, turret, powder hopper, dosing chamber, and tamping pins
  • All FDA-approved contact parts
  • Mounted on casters and leveling pads
  • AC variable-speed frequency control
  • Dual-sided drive cams
  • Built-in drive pump: compressed air powered pump
  • Pneumatic on/off control feature for capsule feeding system
  • Five tamping stations
  • 10” color touch-screen control panel mounted on swing out arm
  • Total alarm system for complete operator and machine safety
  • Independent timers for capsule hopper, power feed, and alarm system
Features of the CPT CF 100:
  • Heavy-duty steel frame
  • #304 Stainless steel turret, capsule hopper, powder hopper, powder chamber, tamping pins and adjustment screws, and dosing disk
  • All FDA-approved contact parts
  • Torque limiter for safety
  • Two-piece drive cams
  • Built-in vacuum pump
  • Two capsule magazines and raceways: side pushers and down pushers
  • Top cam system
  • PLC control system
  • 10” color touch-screen control panel mounted on swing-out arm
  • Power switches
  • Inching step-drive button
  • Emergency stop button
  • Alarm buzzer
  • Timers
