Swagelok: Pressure Control for Pharma and Biopharm Systems

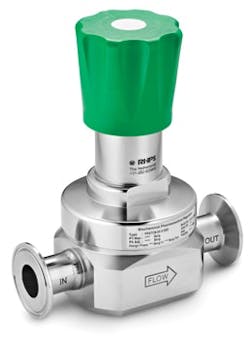

Swagelok RHPS PRSTC model spring-loaded, pressure reducing regulators offer accurate control of gas and liquid pressures in sanitary systems. Inlet pressures as high as 230 psig (16 bar), can be controlled to outlet pressures ranging from 4.3 to 130 psig (0.3 to 9 bar). Operating temperature range is -31° to 284° F (-35° to 140° C).

Three body sizes are available: 1/2, 1, and 1 1/2 in., all with integral sanitary clamp end connections. Flow coefficients (Cv) are 0.70 (1/2 in.), 1.95 (1 in.), and 5.48 (1 1/2 in.). Designed for clean service, regulator internal surfaces are finished to 16 μin. (0.4 μm) Ra standard.

Body and spring housing are of 316L stainless steel construction. Diaphragm, seat, and O-rings are FDA-compliant EPDM. All regulators are 100% factory tested, ultrasonically degreased, and cleaned. Cleaning based on ASTM-G93 Level C/CGA 4.1 is available as an option.

Headquartered in Solon, Ohio, U.S.A., Swagelok Company is a major developer and provider of fluid system solutions, including products, assemblies, and services for the research, instrumentation, pharmaceutical, oil and gas, power, petrochemical, alternative fuels, and semiconductor industries. Its manufacturing, research, technical support, and distribution facilities support a global network of more than 200 authorized sales and service centers in 57 countries. For more information about Swagelok, visit the company’s Web site at www.swagelok.com.
